Eco-Friendly Display
1、Working Principle

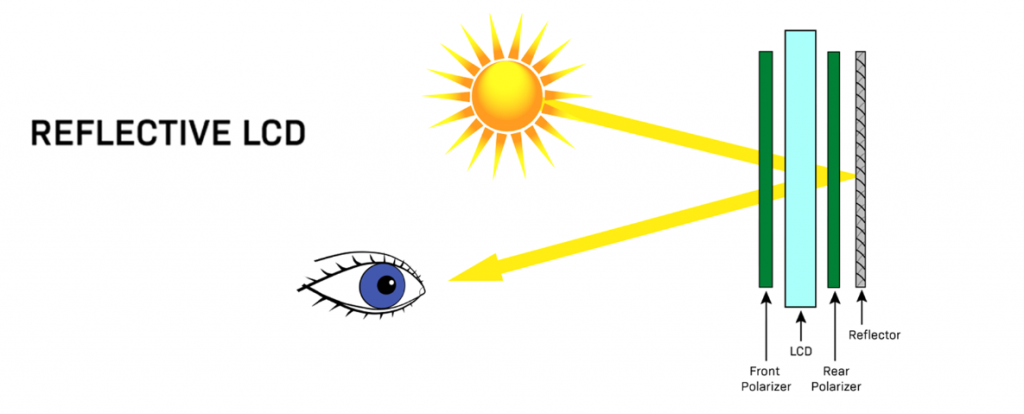

Reflective LCD work by using a reflective layer along with the polarizing filter, to reflect the light back to the user’s eyes instead of emitting light from a backlight. The liquid crystal layer modulates the amount of light that is reflected back, creating the desired image.

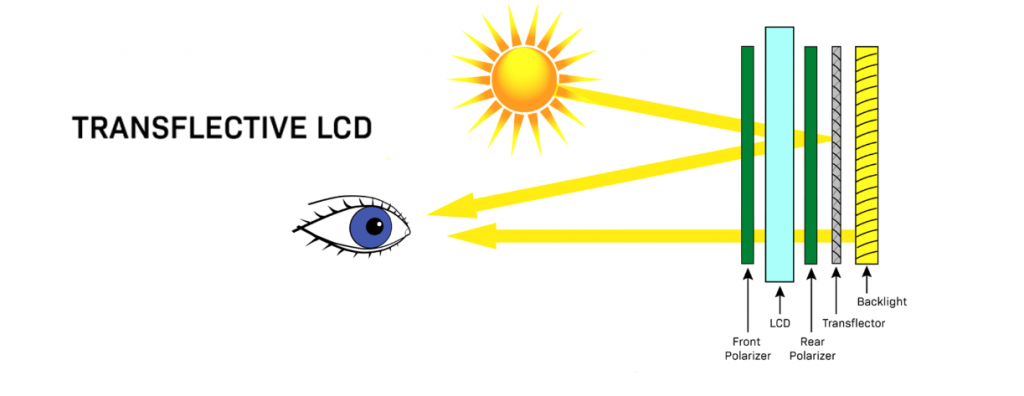

Transflective LCD uses a semi-reflective film. A semi-reflective film is a special film that can reflect light on the front side and transmit light on the back side. When it is outdoors in the sun, the reflected light on the front side is used for display. The stronger the outdoor sunlight is, the stronger the backlight reflected by the screen is, so that clear display and reading can be achieved in the outdoor sunlight. In a dim environment, the backlight is used to penetrate the back side to light up the screen. At the same time, the screen uses an illumination sensor to control the brightness of the backlight through the change of the ambient light source, thereby realizing the free switching of the display mode in different ambient brightness environments to achieve the best display effect.
2、Technical Features
Eco-Friendly displays FHD video, pictures and text through ambient light, and the product no longer uses its own LED backlight, so that it can be visible in strong sunlight, the stronger the light, the clearer the display, and at the same time, it is far lower than the power consumption of the matching outdoor bright LCD screen, and the power consumption of ordinary bright outdoor LCD screen is 1/20. It is a super energy-saving green environmental protection product.
No backlight, just rely on external ambient light to display, there will be no blue light caused by the backlight, can also be applied to indoor eye monitor and eye tablet computer display screen, is a real significance. On the eye protection LCD display.
Eco-Friendly display terminal ensures the reliable operation of products through a professional outdoor IP65 seal grade structure design, specialized heat insulation protection and UV protection design for use in sunny conditions. It is equipped with a military-grade three defense level Android system motherboard and various application software, providing a comprehensive set of solutions for outdoor subdivision industries.
3、The Market Prospect of Eco-Friendly Display
Eco-Friendly display has the characteristics of clearly displaying FHD video, pictures and text under strong light, plus the advantage of super energy saving without blue light.
Can be widely used in many outdoor multimedia display scenes and eye care display products, more typical applications are:

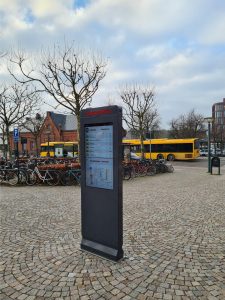

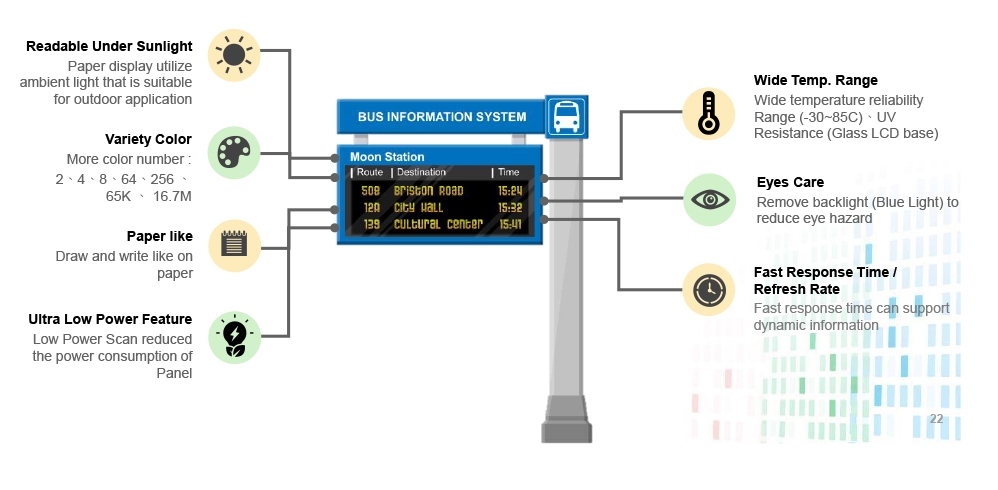

Electronic bus stop sign
Outdoor electronic bulletin board

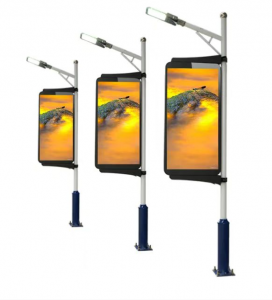

Outdoor light pole display
