15.6 inch Intelligent Android Panel PC
Size:10.1”~21.5”
Industrial Android tablet PC with 3mm thin front bezel excellent for embedding into cabinets and equipment. Built with industrial electronic components, effectively prevent external electromagnetic interference.
| Quick Details: | |||
| CPU | RK3568 | DDR | 2G/4G |
| EMMC | 16G/32G/64G | Panel size | 15.6″ |
| Touch Type | Capacitive(G+G) | Brightness | 250cd/m2 |
| Material | Aluminum Alloy | IP Grade | Front IP65 |
Product Details
| Display parameters | Touch parameters | |||
| LCD Size | 15.6” | Touch Types | Capacitive(G+G) | |
| Active Area | 344.16 (W) * 193.59 (H)mm | Clicks | Capacitive＞50 million times | |
| Resolution | 1920*1080 | Surface hardness | 7H | |
| Contrast Ratio | 3000:1 | Touch Point | 10 points | |
| Picture Aatio | 16:9 | Type of glass | Chemically strengthened glass | |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Transmittance | ＞85% | |
| Response Time | 18 ms | Power consumption | ||
| Backlight Type | E-LED | Standby power（w） | ≤0.5W | |
| Brightness | 250cd/m2 | Power consumption（w） | ≤20W | |
| Life span | 50000H | Supply Voltage（v） | DC12V/DC9-36V(Optional） | |
| Protection | IP65 (front screen) | Audio output power | 4Ω*2W | |
| Android solution | Dimensions | |||
| Chip | RK3568 | Packing Size (mm) | 500*355*125mm | |

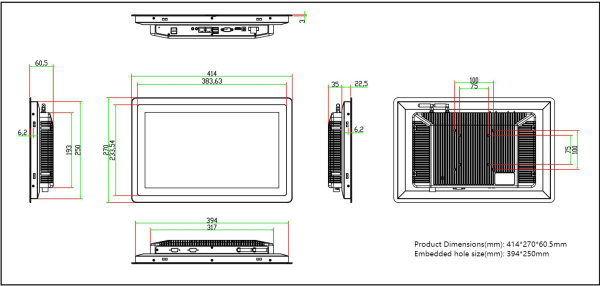

| CPU | Cortex-A55*4@2.0GHz | Product Dimensions(mm) | 414*270*60.5mm | |
| GPU | Mali-G52 | NW(kg) | TBD | |
| NPU | 1T | GW(kg) | TBD | |
| DDR | 2G/4G | Opening size(mm) | 394*250mm | |
| EMMC | 16G/32G/64G | Installation | Embedded | |
| OS | Android 11.0 | Environment | ||
| LAN | 10/100/1000M | Operating temperature | -10℃~60℃ | |
| WiFi | 2.4G | Operating humidity | 10%～90% RH Non-Condensing | |
| B/T | 4.2 | Storage temperature | -20℃~70℃ | |
| System upgrade | TF card、USB | Storage humidity | 10%~90% RH Non-Condensing | |
| Port parameters | Accessories | |||
| External Connectors | RJ45*1, EARPHONE*1, HDMI*1, USB2.0*2 (OTG/HOST, RS232*2,DC *1, TF Card *1, RS422 /RS485 (Optional） | Power Cable | 1 (AC 100-240V 50/60Hz) | |
| Graph Supported Format | Power adapter | 1 (12V4A) | ||
| Video format | mp4, mkv, wmv, mov, flv3 | Fixed part | Recessed clip*4, PM4x30 screw*4 | |
| Picture format | BMP, JPEG, PNG, GIF | Warranty | 1 year warranty | |
