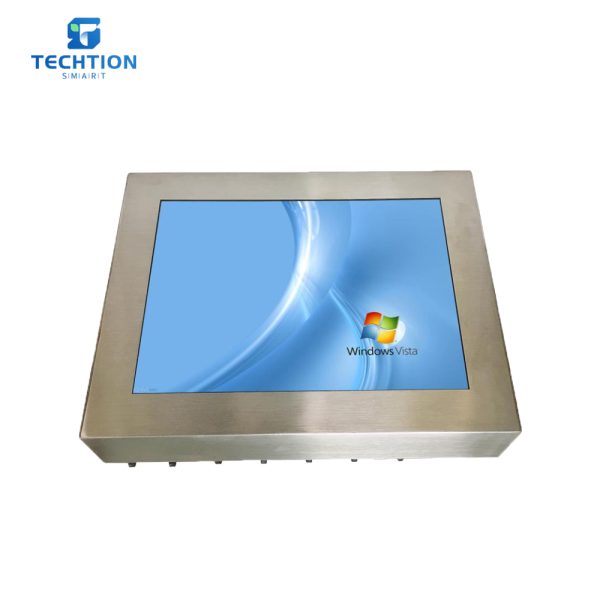

15 inch Stainless Steel X86 Panel PC(Resistive)

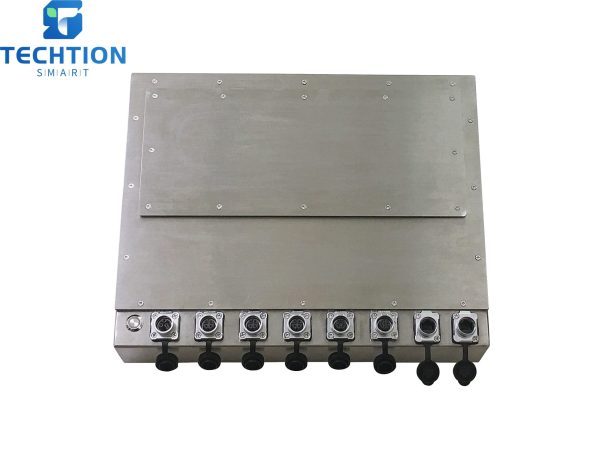

SUS304 Stainless Steel / Corrosion Resistance / Resistive ( EETI IC) / Aviation Connector / IP67
| Panel size | 15″ | Resolution | 1280*1024 |
| Viewing Angle | 80/80/80/80(Typ.)(CR≥10) | Brightness | 300cd/m2 |
| Surface Hardness | 3H | IP Grade | IP67 |
| Touch Type | Resistive touch (EETI IC) | Material | SUS304 Stainless steel |
Product Details
| Main parameters | Mainboard solution | |||
| Model | TS-150PRZX | CHIP | I3-7100U | |
| Product Type | Stainless Steel X86 Panel PC | CPU | Intel Core I3-7100U@2.4GHz | |
| Frame+Structure | SUS304 Stainless steel | GPU | Intel HD Graphics 620 | |
| Display parameters | DDR | DDR4-8G 2133/2400MHz | ||
| LCD Size | 15” | EMMC | 128G SSD | |
| Active Area | 304.128(W) x 228.096 (V) mm | OS | Windows 10（Windows 7/Windows8/Linux optional） | |
| Resolution | 1280*1024 | LAN | 1000M (Realtek RT8111E) | |
| Contrast Ratio | 600:1 | WiFi | Wifi2.4/5G,WIFI6 (Optional) | |
| Picture Aatio | 4:3 | B/T | 5.3 (Optional) | |

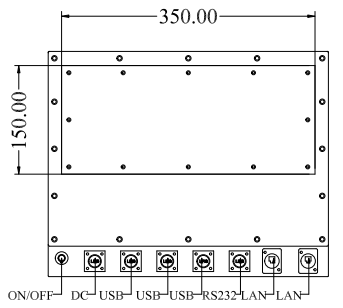

| Viewing Angle | 80/80/80/80(Typ.)(CR≥10) | Interface | USB*3，LAN*2，DC IN*1，RS232*1 | |
| Response Time | 8ms | Power consumption | ||
| Backlight Type | E-LED | Standby Power（w） | ≤1W | |
| Brightness | 300cd/m2 (Optional:1000 cd/m2) | Power Consumption（w） | ≤50W | |
| Life Span | 50000H | Supply Voltage（v） | DC12V/ (Optional :DC24V/DC 9-36V) | |
| IP Rating | IP67 | Speaker | 8Ω5W*2 (Optional) | |
| Touch parameters | Dimensions | |||
| Touch Types | Resistive touch (EETI IC) | Packing Size (mm) | TBD | |

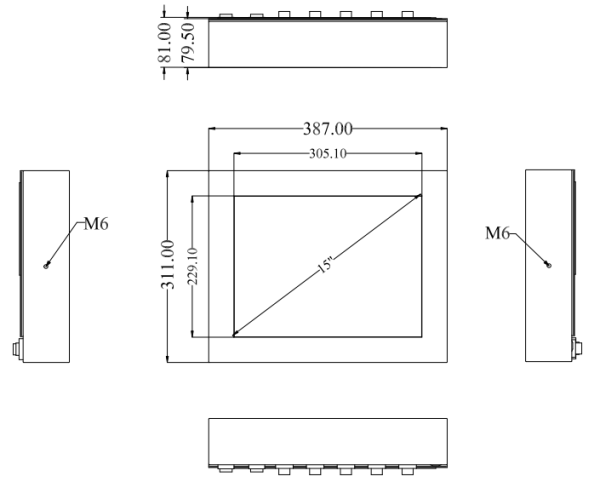

| Clicks | ≤500000 times | Product Dimensions(mm) | 387*311*81mm | |
| Surface Hardness | 3H | NW(kg) | 6.5kg | |
| Touch Point | Single Point | GW(kg) | 9.5kg | |
| Material | ITO | VESA(mm) | M6*2 (Side) | |
| Transmittance | ＞78% | Desktop Stand/GW(kg) | 3.0kg | |
| Environment | Installation | Desktop | ||
| Operating Temperature | -20℃~70℃ | Accessories | ||
| Operating Humidity | 10%～90% RH Non-Condensing | AC Power Cable | *1 | |
| Storage Temperature | -30℃~80℃ | Power Adapter | *1 12V/5A (AC 100-240V 50/60Hz) | |
| Storage Humidity | 10%~90% RH Non-Condensing | Others | Desktop Stand *1, USB Cable*3, Network Cable*2, RS232 Cable*1, Wifi antenna*2 | |
