18.5 inch Industrial Monitor
Applications: Food processing plants, marine operations, water treatment plants, pharmaceutical plants, meat slaughterhouses, ports and oil fields, chemical plants, etc.
| Panel size | 18.5” | Resolution | 1920*1080 |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Brightness | 1500 cd/m2 |
| Surface Hardness | 6H | IP Grade | IP67 |
| Touch Type | Capacitive(G+G) EETI IC | Material | Aluminum Frame + Sheet Metal Chassis |
Product Details
| Main parameters | Touch parameters | |||
| Model | TS-185MCBX | Touch Types | Capacitive(G+G) EETI IC | |
| Product Type | Industrial Monitor | Clicks | ≥50 million times | |
| Frame+Structure | Aluminum Frame + Sheet Metal Chassis | Surface Hardness | 6H | |
| Display parameters | Touch Point | 10 points | ||
| LCD Size | 18.5” | Type of Glass | Chemically strengthened glass (AG) | |
| Active Area | 408.96(W)×230.04(H) mm | Transmittance | ＞87% | |
| Resolution | 1920*1080 | AD Board solution | AD Board solution | |
| Contrast Ratio | 1000:1 | Interfaces | VGA*1，HDMI IN *1，TOUCH USB*1，DC IN*1 | |
| Picture Aatio | 16:9 | Front Buttons | MENU，AUTO，RIGH，LEFT，ON/OFF | |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Video Input | HDMI (480i, 480p, 720p, 1080i, 1080p) | |
| Response Time | 20 ms | PC-RGB (Up to 1920×1080@60Hz) | ||
| Backlight Type | E-LED | Power consumption | ||
| Brightness | 1500 cd/m2 | Standby Power（w） | ≤0.5W | |
| Life Span | 50000H | Power Consumption（w） | ≤25W | |
| IP Rating | IP67 | Supply Voltage（v） | DC12V/DC9-36V (Optional) | |
| Environment | Dimensions | |||
| Operating Temperature | -20℃~70℃ | Packing Size (mm) | TBD | |

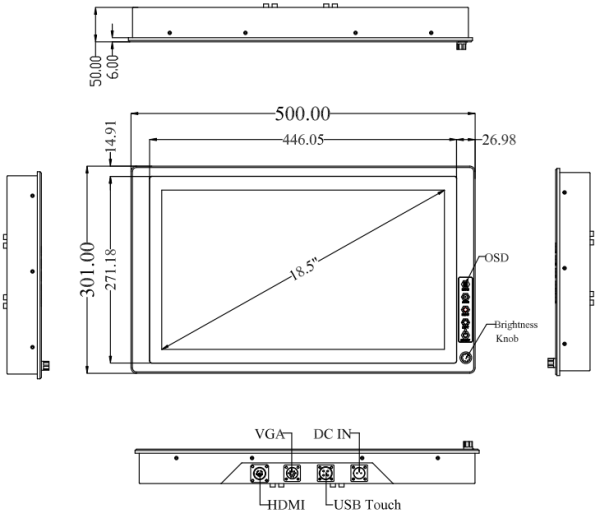

| Operating Humidity | 10%～90% RH Non-Condensing | Product Dimensions(mm) | 500*301*50mm | |
| Storage Temperature | -20℃~70℃ | NW(kg) | TBD | |
| Storage Humidity | 10%~90% RH Non-Condensing | GW(kg) | TBD | |
| Accessories | VESA(mm) | 100*100mm/75*75mm | ||
| Accessories | AC Power Cable*1， Power Adapter*1 12V/3A (AC 100-240V 50/60Hz)，HDMI Cable*1，VGA Cable*1，TOUCH-USB Cable*1 | Installation | Wall Mounted /Hanging/Desktop | |
