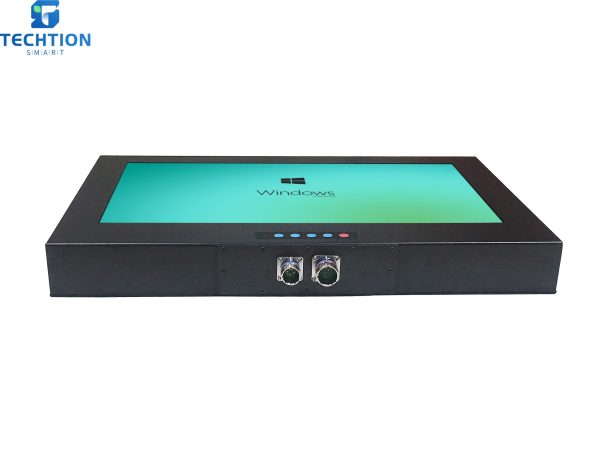

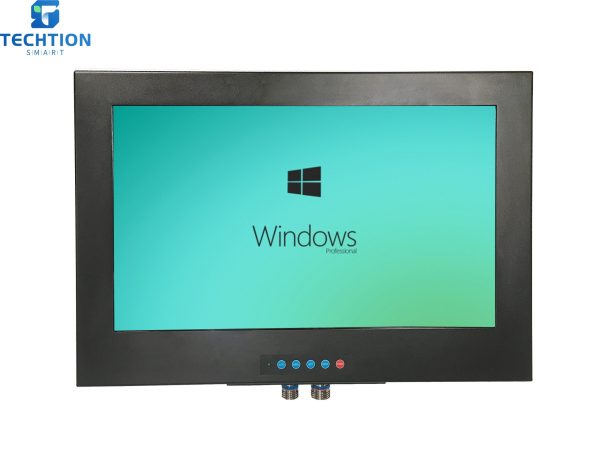

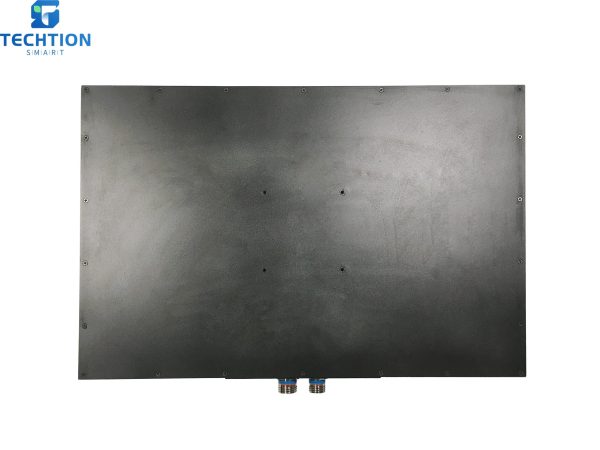

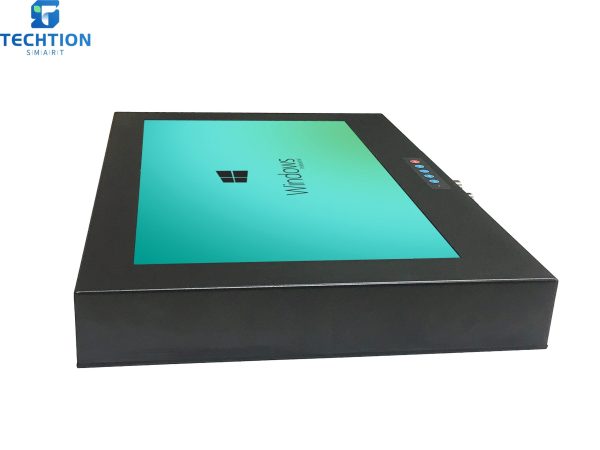

21.5 inch Stainless Steel Industrial Monitor(Resistive)
SUS304 Stainless Steel / Corrosion Resistance /High Brightness/ Resistive ( EETI IC) / Aviation Connector / IP67
Quick Details:
| Panel size | 21.5″ | Resolution | 1920*1080 |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Brightness | 1000cd/m2 |
| Surface Hardness | 3H | IP Grade | IP67 |
| Touch Type | Resistive ( EETI IC) | Material | SUS304 Stainless steel |
Product Details
| Main parameters | Power consumption | |||
| Model | TS-215MRBX | Standby Power（w） | ≤0.5W | |
| Product Type | Stainless Steel Industrial Monitor | Power Consumption（w） | ≤50W | |
| Frame+Structure | SUS304 Stainless steel (Black) | Supply Voltage（v） | DC12V/DC9-36V (Optional) | |
| Display parameters | Dimensions | |||
| LCD Size | 21.5″ | Packing Size (mm) | TBD | |

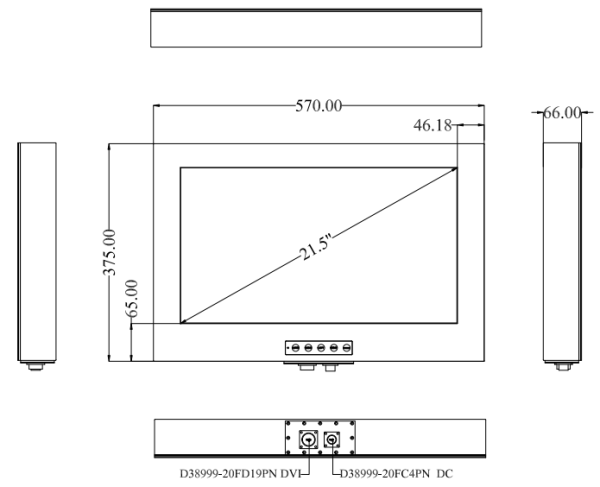

| Active Area | 476.064(W)×267.786(H) mm | Product Dimensions(mm) | 570*375*66mm | |
| Contrast Ratio | 1000:1 | NW(kg) | TBD | |
| Picture Aatio | 16:9 | GW(kg) | TBD | |
| Response Time | 20 ms | VESA(mm) | 100*100mm | |
| Backlight Type | E-LED | Installation | Wall Mounted /Hanging/Desktop | |
| Life Span | 50000H | Accessories | ||
| Touch parameters | AC Power Cable | *1 | ||
| Touch Types | Resistive ( EETI IC) | Power Adapter | *1 12V/3A (AC 100-240V 50/60Hz) | |
| Clicks | ≤1 million times | Wall Mounted Bracket | *1 | |
| Surface Hardness | 3H | DVI Cable | *1 | |
| Touch Point | Single Point | TOUCH-USB Cable | *1 | |
| Material | ITO | Environment | ||
| Transmittance | ＞78% | Operating Temperature | -20℃~70℃ | |
| AD Board solution | Operating Humidity | 10%～90% RH Non-Condensing | ||

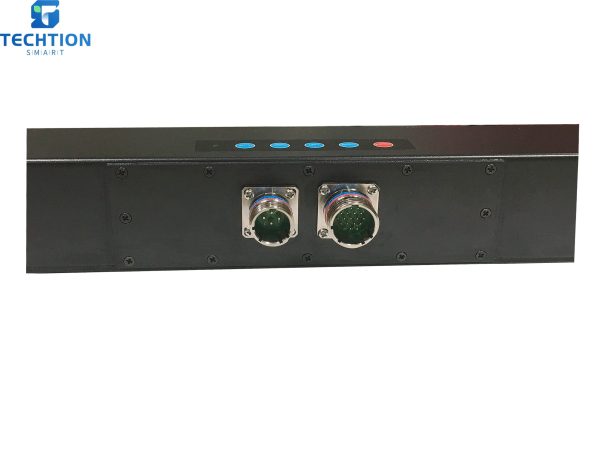

| Interfaces (D38999) | DVI IN *1，TOUCH USB*1，DC IN*1 | Storage Temperature | -30℃~80℃ | |
| Front Buttons（OSD） | LED, AUTO, MENU, UP, DOWN, POWER | Storage Humidity | 10%~90% RH Non-Condensing | |
