19 inch Stainless Steel Industrial Monitor
SUS304 Stainless Steel / Corrosion Resistance / Resistive ( EETI IC) / Aviation Connector / IP67 /6H
Quick Details:
| Panel size | 19″ | Touch Point | 10 points |
| Viewing Angle | 85/85/80/80(Typ.)(CR≥10) | Brightness | 1000cd/m2 |
| CHIP | NT68676UFG | IP Grade | IP67 |
| Touch Type | Chemically strengthened glass | Material | SUS304 Stainless steel |
Product Details
| Main parameters | AD Board solution | |||
| Model | TS-190MCBX | CHIP | NT68676UFG | |
| Product Type | Stainless Steel Industrial Monitor | Interfaces | HDMI IN *1，TOUCH USB*1，DC IN*1 | |
| Frame+Structure | SUS304 Stainless steel | Video Input | HDMI (480i, 480p, 720p, 1080i, 1080p) | |
| Brand | TECHTION | PC-RGB (Up to 1920×1080@60Hz) | ||
| Display parameters | Power consumption | |||
| LCD Size | 19” | Standby Power（w） | ≤0.5W | |
| Active Area | 76.32 (H) * 301.06 (V)mm | Power Consumption（w） | ≤25W | |
| Resolution | 1280*1024 | Supply Voltage（v） | DC12V/DC9-36V (Optional) | |
| Contrast Ratio | 1000:1 | Dimensions | ||
| Picture Aatio | 5:4 | Packing Size (mm) | TBD | |

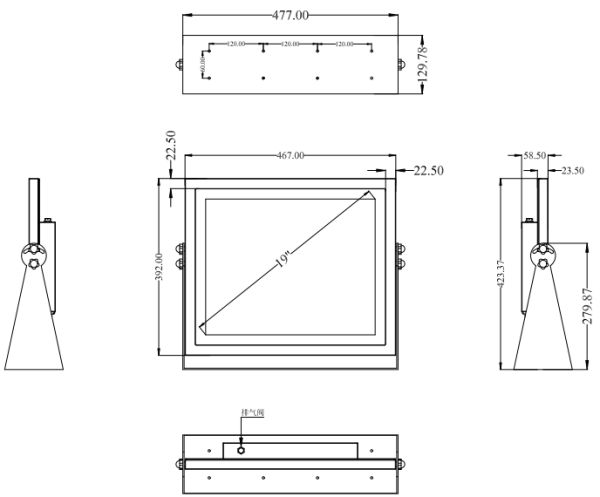

| Viewing Angle | 85/85/80/80(Typ.)(CR≥10) | Product Dimensions(mm) | 467*392*58.5mm | |
| Response Time | 20 ms | NW(kg) | TBD | |
| Backlight Type | E-LED | GW(kg) | TBD | |
| Brightness | 1000 cd/m2 | VESA(mm) | 100*100mm/75*75mm | |
| Life Span | 50000H | Installation | Wall Mounted /Hanging/Desktop | |
| IP Rating | IP67 | Accessories | ||
| Touch parameters | Power Adapter | *1 12V/3A (AC 100-240V 50/60Hz) | ||
| Touch Types | Capacitive(G+G) EETI IC | Others | AC Power Cable*1，Desktop Stand (optional) *1，VGA Cable*1，TOUCH-USB Cable*1 | |
| Clicks | ≥50 million times | Environment | ||
| Surface Hardness | 6H | Operating Temperature | -20℃~70℃ | |
| Touch Point | 10 points | Operating Humidity | 10%～90% RH Non-Condensing | |
| Type of Glass | Chemically strengthened glass | Storage Temperature | -30℃~85℃ | |
| Transmittance | ＞87% | Storage Humidity | 10%~90% RH Non-Condensing | |
